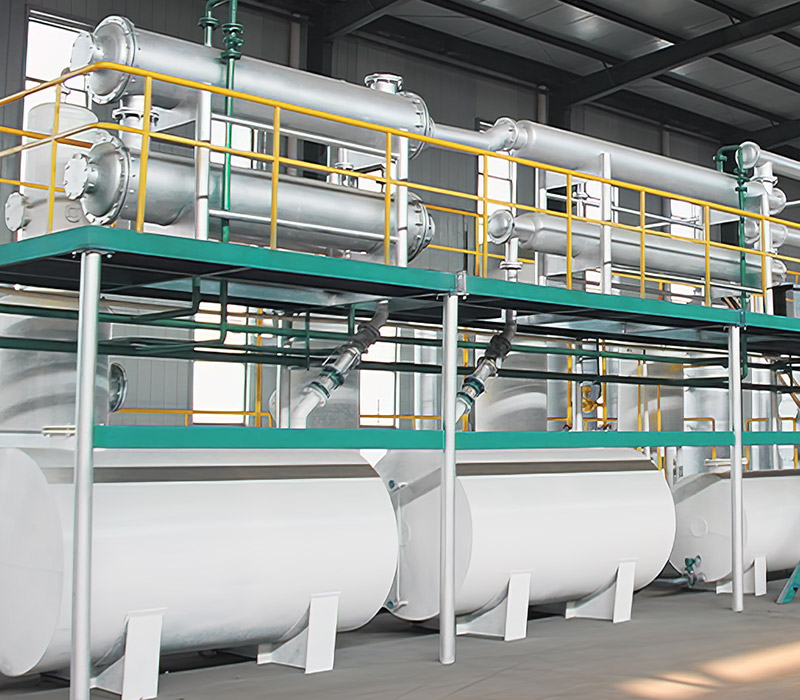

Atmospheric Vacuum Distillation Plant for Waste Engine Oil
The system specializes in recycling waste lubricants (e.g., engine oil, gear oil) through low-temperature catalytic pyrolysis. Operating at atmospheric pressure, it achieves 80-85% base oil recovery with multi-stage distillation and advanced decolorization. Equipped with automation control, gas recycling, and CE-certified safety systems, it ensures energy-efficient, continuous production of high-quality base oil. Ideal for automotive and industrial waste oil regeneration.
- Equipment Introduction
- Process Description
- Equipment Features

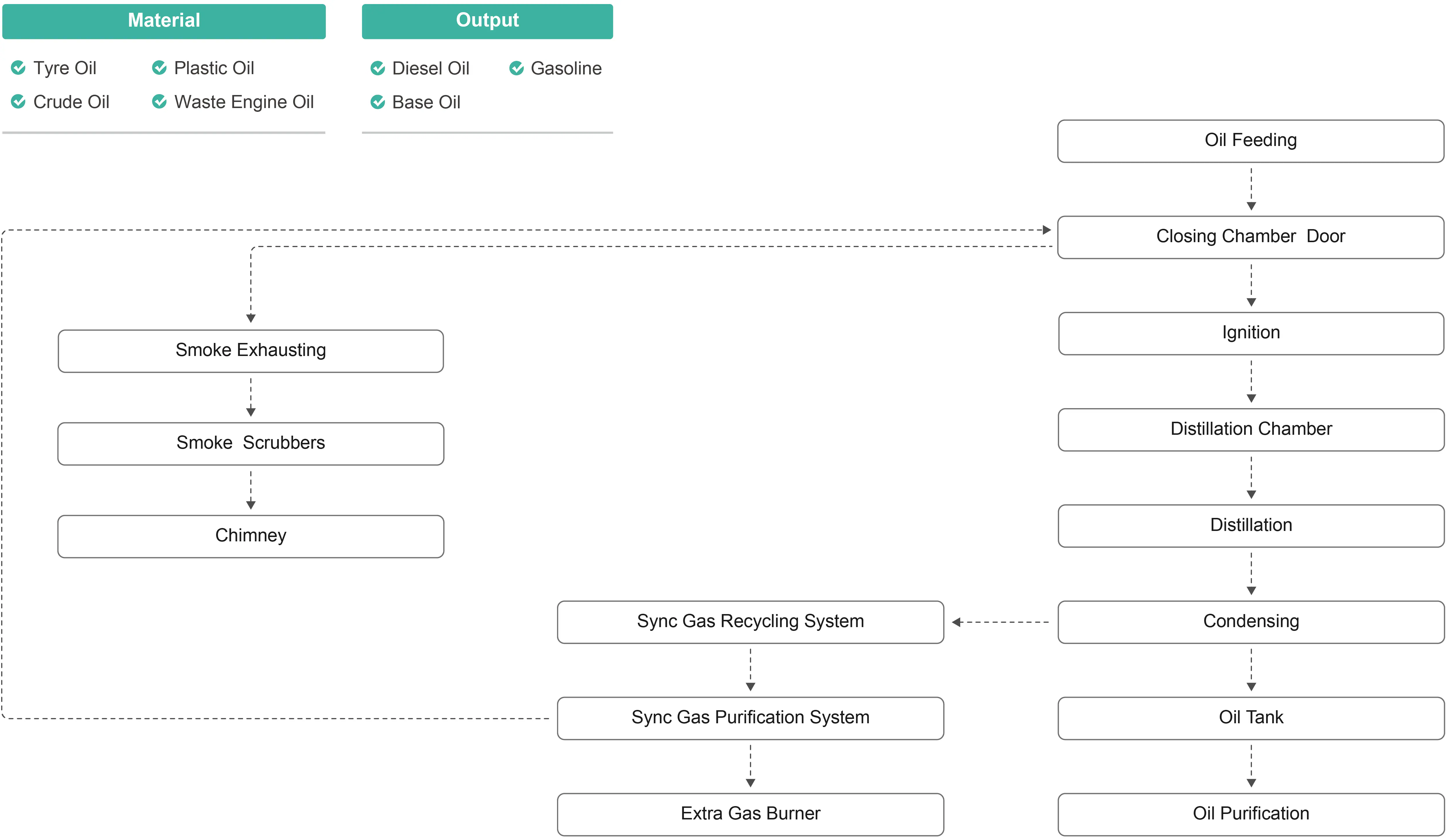

- Flowchart
- Equipment Parameters
- Manufacturing Process
- After-sales Support
- Cooperation Mode
- Equipment FAQ
Multi-stage distillation, high recovery rate
The multi-stage distillation tower structure is adopted to separate light and heavy components through precise temperature control, so as to achieve a base oil recovery rate of up to 80-85%.
Atmospheric and vacuum synergy, lower heat loss
The atmospheric section initially removes light impurities, and the vacuum section low-temperature fractionates the main components under negative pressure to avoid high-temperature cracking, extend the life of the equipment, and ensure the quality of the base oil.
Low-temperature catalytic cracking technology
The catalyst system is introduced to effectively destroy the molecular chain structure of impurities, improve the oil yield and purification degree, and reduce the residual harmful elements such as sulfur and chlorine.
Through PLC intelligent control, real-time adjustment and monitoring of temperature, pressure, liquid level, etc. are realized, which makes the operation safer, the production line smarter, and supports remote control and data recording.
The by-product combustible gas can be used for heating devices after separation, saving about 30%-40% of fuel costs; the tail gas is discharged after being treated by condensation and purification devices, which meet the CE environmental protection standards.
| Product Model | DB-8 | DB-10 |
|---|---|---|
| Capacity | 8 ton/day | 10 ton/day |
| Containers | 1*FR+2*40’HQ | |
| Gross Weight(Ton) | 45 | 55 |
| Working Power(KW) | 20-30 | |
| Dimension(mm) | Φ2500*8800*18(Furnace) | Φ2500*11000*18(Furnace) |
-
1. Direct Catalytic Distillation
Waste oil pumped into processor → catalytic heating vaporizes oil.
-
2. Vapor Reforming & Fractionation
Vapor reacts with catalysts → condenses → fractionates into base fuel oil.
-
3. Fuel Oil Refinement
Base oil undergoes sedimentation + filtration + chemical treatment + additive blending.
-
4. Self-Powered Gas Recycling
Non-condensable gas purified → fuels processor burner (30% energy saving).
-
5. emission-controlled Flue Gas Treatment
Alkali spray neutralization → adsorption tower → clean discharge (EU-compliant).
-
Continuous High-Capacity Processing
Advanced technology enables large-scale 24/7 production.
-
Premium Output Quality
Strict process control ensures consistent fuel oil meeting ASTM standards.
-
Efficient Heating & Maintenance
Rapid non-stick heating walls minimize cleaning downtime.
-
Triple-Layer Safety
Submerged arc welding + ultrasonic NDT + dual alarm system.
-
Patented Horizontal Design
99% conversion rate with optimized thermal efficiency.
-
National Patent Insulation
Energy-saving shell reduces heat loss by 30%.
-
High-Yield Condensing System
Enhanced cooling boosts oil output while extending service life.
-
Water-Film Dedusting Patent
Effective acid gas/dust removal compliant with ISO 7935.
-
Centralized Automation
Control desk monitors full production line in real-time.
|
Item |
Project |
|---|---|
|
Equipment Model |
DB |
|
Equipment Size |
Φ2500*8800；Φ2500*11000 |
|
Suitable Raw Materials |
Waste Engine Oil/Pyrolysis Oil |
|
Working Type |
Batch Type |
|
Structure Type |
Horizontal Static |
|
24-hour processing capacity |
5-8(ton); 8-10(ton) |
|
Working Pressure |
Normal Pressure |
|
Equipped Power (KW) |
20-30 |
|
Cooling Method |
Circulating Water cooling |
|
Oil Yield |
80%-90% |
|
Heating Method |
Direct heat/Hot air |
|
Installation |
No foundation/With foundation |
|
Noise |
<8S |
|
Gross Weight |
55； 60 |
|
Installation Size |
35m*20m |
|
Manpower Shift |
1-2 |

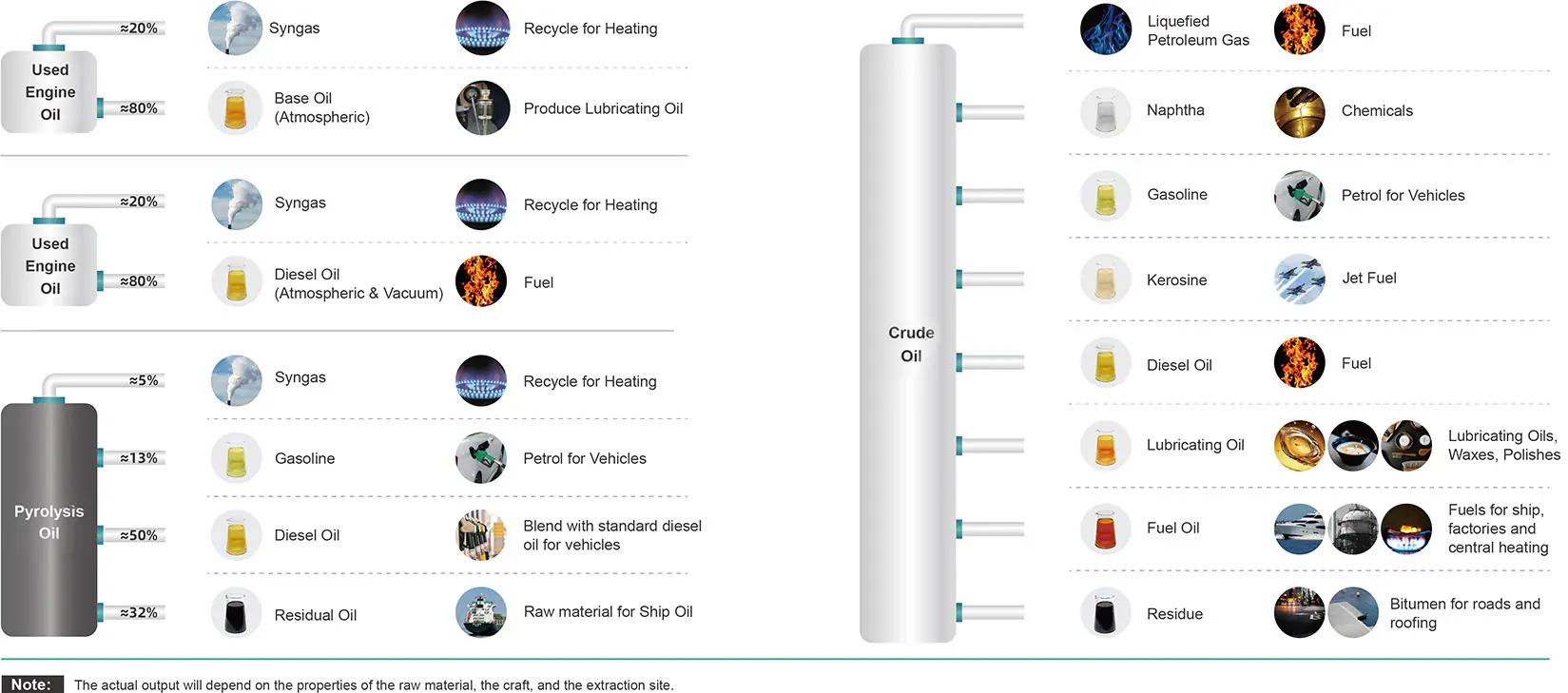

Oil Yield of Waste Plastic & Rubber Products
-
Determine the customized requirements
-
Latest blanking
-
Folding
-
Workpiece pairing
-
Welding
-
Assembly
-
Commissioning
-
Surface treatment
-
Quality inspection
-
Shipping
-
Pre-sales GuidanceUnderstand customer needs in detail, analyze planning and provide product configuration solutions for customers to choose.
-
Sales ConsultationInvite customers to visit the production site or factory area and introduce the entire production process; provide customers with comprehensive consulting, planning, implementation and other series of services.
-
After-sales service1.Dual services of exclusive delivery manager and after-sales engineer;
2.On-site installation, commissioning and production, engineers will escort you throughout the process;
3.Provide professional training and related technical consultation;
4.The after-sales department has a 24-hour emergency response service system;
5.Maintain customers regularly, maintain efficient communication, and solve problems for customers in a timely manner;
6.Provide customers with consumable parts at cost prices for life.
Cooperation model, equity share, and investment methods can be negotiated as needed.
Applicable to the situation where sufficient trust cannot be established in the early stage of cooperation; Cooperation term: Fixed term. Note: We directly participate in production to mitigate the risk of equipment failures during operation, the equipment's operational cycle and efficiency.
Conducts a feasibility analysis for the local market.
Provide necessary blueprints and solutions for factory construction as needed.
Provide all legal licenses and documents for local legal operation.
We can provide certain upstream and downstream raw materials and sales channels to establish an internal product distribution network.
Provide calculation and analysis based on the client’s local market. The client is responsible for providing relevant data. The client may also visit the offline factory for inspection.
The client provides installation tools, while we provide engineering guidance for installation and a complete set of onsite installation services.
1 year warranty + 3 to 5 years of maintenance service, with maintenance provided by local service providers.
Payment terms are negotiable, with flexible payment cycles for the balance. For example, 90% upfront, 10% balance, or 80% upfront, 20% balance.
The cooperation model and details will be discussed separately based on the region.
We ensure full supply, and we reserve the final right of interpretation. Commission and maintenance fees are negotiable.
-
What is the delivery time?
Within 60 days after receiving the deposit.
-
What is the payment method?
The main payment method is T/T. For other payment methods, please contact us.
-
Are you a factory or a trading company?
We have our own factory.
-
Where is your factory located?
In Shangqiu City, Henan Province.
-
Do you provide customization services?
We provide customization services. For specific details, please contact us.
-
Do you support OEM and ODM?
We support OEM and ODM.
-
Do you support providing samples?
We do not support sample customization service for now.
-
What are the professions of the people?
Workers do not need professional skills. We will offer working instruction manual, and our engineers will also provide on-site guidance for several months to help you with the commission and personnel training.
-
How does the distillation process work?
Engine oil is distilled into base oil. Pyrolysis oil is distilled and fractionated to obtain gasoline, diesel, and residual oil.
-
What is the capacity and productivity of the machine?
The capacity can be customized according to customer's requirements. Normally, a single line can do from 50kg to 50 tons. The oil yield and other products depend on the type of material processed. Please contact customer service for more details.
-
What is the quality of distillate diesel produced by the plant?
The quality of distillate diesel depends on the type of vehicle being used. It can typically be mixed with normal diesel at a ratio of 10%-20% for use in cars and trucks.
-
How long does it take to ship and do you provide help with assembly?
Usually, it takes in 60 days for manufacturing and the delivery depends on the port of arrival. Our port of departure is Lianyungang Port by default and customers can also designate the departure port.
-
What is the warranty period and the after-sales support you provide?
Our warranty period is about 1 year which is also negotiable. We will provide the replacement parts, maintenance support, and instructions for use for workers. We have engineers for on-site installation support. Our engineer can arrive at your factory at any time after installation. It does not have a limitation of time.
-
What information do I need to provide to get an accurate quotation?
Key information such as raw materials, daily processing capacity, project location, etc.
-
If I don't go to your company, how can I get the product progress?
For each project, we will assign an exclusive project team, and there will be a dedicated person in charge to inform the project progress on time.
-
